Aruba 6000 48G Class4 PoE 4SFP 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Name: Aruba 6000 48G Class4 PoE 4SFP 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Brand: HPE
SKU: R8N85A
Availability: InStock

Write a review below |

Rated 5 out of 5

In stock

SKU: R8N85A

Condition: New

Delivery: Free Next Day*

Call For Price

In stock

Aruba 6000 48G Class4 PoE 4SFP 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Write a review below |

Rated 5 out of 5

In stock

SKU: R8N85A

Condition: New

Call For Price

(QTY Discount Available)*

Order before 12:00 PM for same day dispatch.

Easy Returns

DISCOUNTED QUOTE

In stock

Description
Reviews (0)

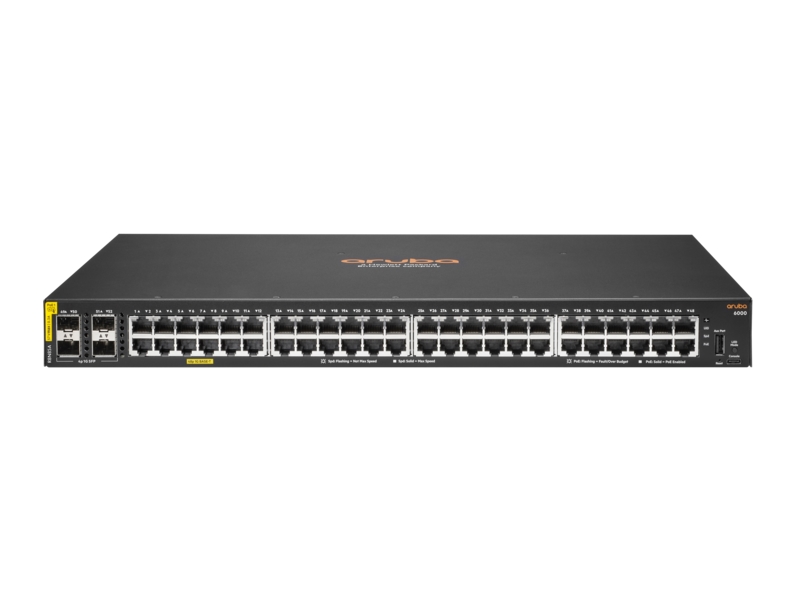

Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A)

The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.

The Aruba CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 370W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The Aruba CX 6000 series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.

Aruba 6000 Series Key Features

Simplify IT operations with modern Layer 2 Gigabit Ethernet switch series that provides entry level, reliable, and convenient wired access connectivity.
Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of access points, client, and IoT devices.
Compact and fanless 12 port PoE model for space-constrained deployments.
Flexibility to manage with Aruba Central1, easy to use Web GUI, CLI, or Aruba NetEdit.
Software defined ready with REST APIs.
HPE Limited Lifetime Warranty with no switch software licensing required.

The Aruba CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
Using Aruba AOS-CX operating system across Aruba CX switching platforms and access-to-core-to-data center deployment domains provides a simpler, more consistent operator experience.
Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE.
Simplifies ownership with no switch software licensing or subscriptions required.

Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A) Technical Specification

General

Power Consumption Description: Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W
Input Voltage: 100-127 VAC / 200-240 VAC
External I/O Ports: 48x ports 10/100/1000BASE-T ports 4x 1G SFP ports
Latency1 Gbps: 1.5 μSec
Routing Capabilities: Static
Switching Capacity: 104 Gbps
Throughput: 77.3 Mpps
Memory and Processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
PoE Capability: 370W Class 4 PoE/PoE+
Warranty Standard Statement: Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/productwarranties/ for warranty and support information included with your product purchase
Weight (imperial): 11.07 lbs
Weight (metric): 5 kg
Product Dimensions (imperial): 1.73 x 17.4 x 12 in
Product Dimensions (metric): 4.4 x 44.2 x 30.5 cm
Operating Temperature: 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Cloud-managed	Yes
Network
IGMP snooping	Yes
IPv6 FIB entries	128
IPv4 FIB entries	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
IPv4 & IPv6 features
IPv6 FIB entries	128
IPv4 FIB entries	256
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Performance
Packet buffer memory	12.38 MB
Stackable	No
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	8192 MB
Flash memory	16384 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Technical details
Form factor	1U
Stackable	No
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	USB
Data transmission
Throughput	77.3 Mpps
Latency (1 Gbps)	1.9 µs
Packet buffer memory	12.38 MB
MAC address table	8192 entries
Switching capacity	104 Gbit/s
Jumbo frames support	Yes
Security
Authentication	MAC-based authentication
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Protocols
IPv6 FIB entries	128
IPv4 FIB entries	256
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Memory
Packet buffer memory	12.38 MB
Memory type	DDR3-SDRAM
Internal memory	8192 MB
Flash memory	16384 MB
Design
Form factor	1U
Stackable	No
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	100 – 240 V
AC input frequency	50 – 60 Hz
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 – 70 °C
Storage relative humidity (H-H)	15 – 90%
Operating temperature (T-T)	0 – 45 °C
Operating relative humidity (H-H)	15 – 95%
Weight & dimensions
Width	17.4″ (442 mm)
Depth	12″ (305 mm)
Height	1.73″ (44 mm)
Weight	11 lbs (5 kg)
