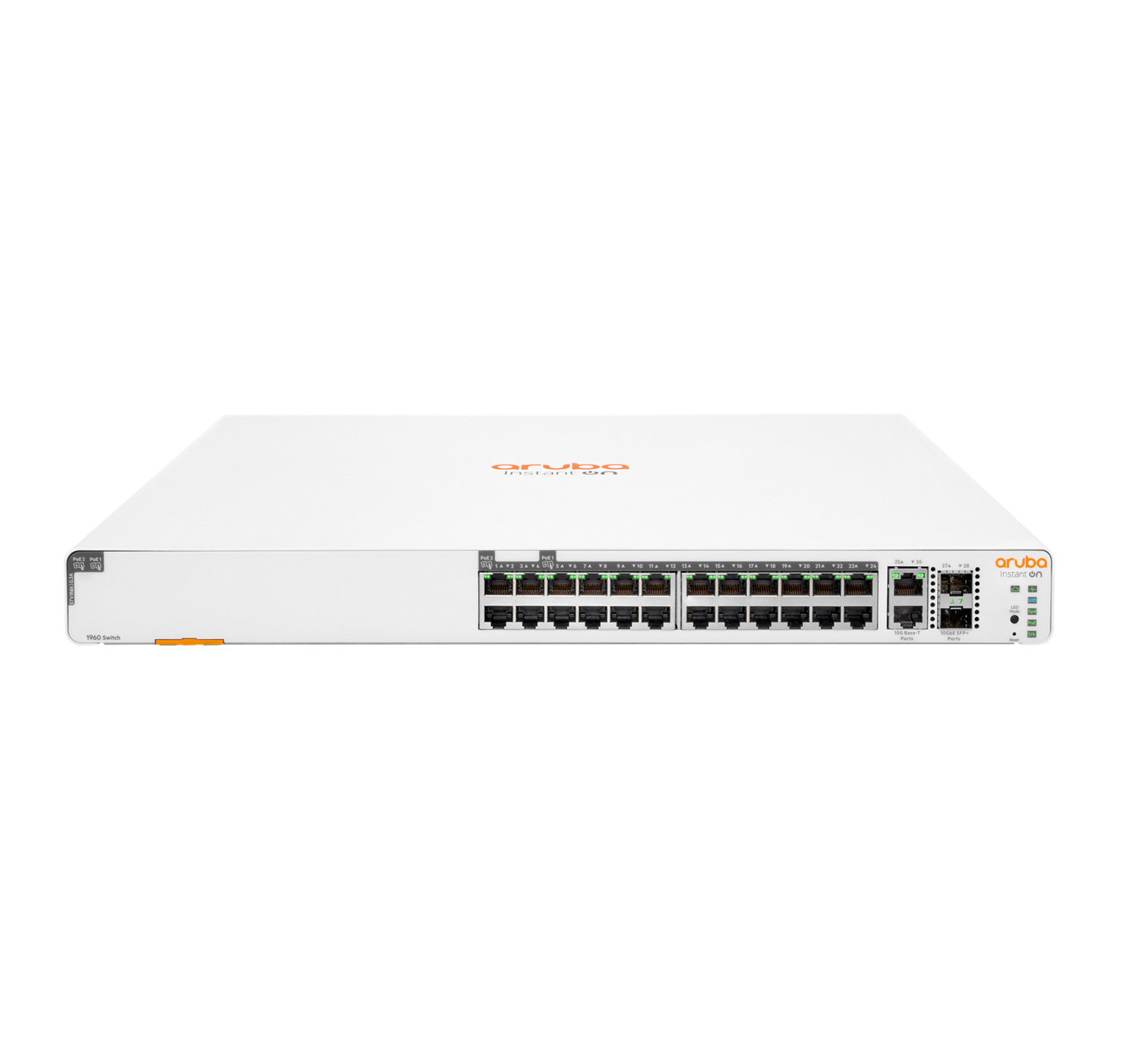

HPE Aruba Networking Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+ Gigabit Ethernet (JL807A)

Name: HPE Aruba Networking Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+ Gigabit Ethernet (JL807A)
Brand: HPE
SKU: JL807A
Availability: OutOfStock

Write a review below |

Rated 5 out of 5

Out of stock

SKU: JL807A

Condition: New

Delivery: Free Next Day*

Call For Price

Out of stock

HPE Aruba Networking Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+ Gigabit Ethernet (JL807A)

Write a review below |

Rated 5 out of 5

Out of stock

SKU: JL807A

Condition: New

Call For Price

(QTY Discount Available)*

Order before 12:00 PM for same day dispatch.

Easy Returns

DISCOUNTED QUOTE

Out of stock

Description
Reviews (0)

HPE Aruba Networking Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+ Gigabit Ethernet

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2+
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Auto-sensing	Yes
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
IPv6 FIB entries	32
IPv4 FIB entries	32
Data transmission
Throughput	95 Mpps
Latency (10-100 Mbps)	4.4 µs
Latency (1 Gbps)	2.2 µs
Latency (10 Gbps)	1.1 µs
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Jumbo frames support	Yes
Security
Authentication	Port-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP snooping
Multicast features
Multicast support	Yes
Protocols
IPv6 FIB entries	32
IPv4 FIB entries	32
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Design
Form factor	1U
Product colour	White
Stackable	Yes
Rack mounting	Yes
Performance
Physical stacking (units)	4
Processor frequency	800 MHz
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	500 W
Power supply included	Yes
AC input voltage	100 – 240 V
AC input frequency	50 – 60 Hz
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 – 70 °C
Storage relative humidity (H-H)	15 – 90%
Operating temperature (T-T)	0 – 40 °C
Operating relative humidity (H-H)	15 – 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	350 mm
Depth	443 mm
Height	44 mm
Weight	4.76 kg
IPv4 & IPv6 features
IPv6 FIB entries	32
IPv4 FIB entries	32
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Technical details
Physical stacking (units)	4
Form factor	1U
Product colour	White
Stackable	Yes
Processor frequency	800 MHz
Rack mounting	Yes
Built-in processor	Yes
Logistics data
Harmonized System (HS) code	85176990
