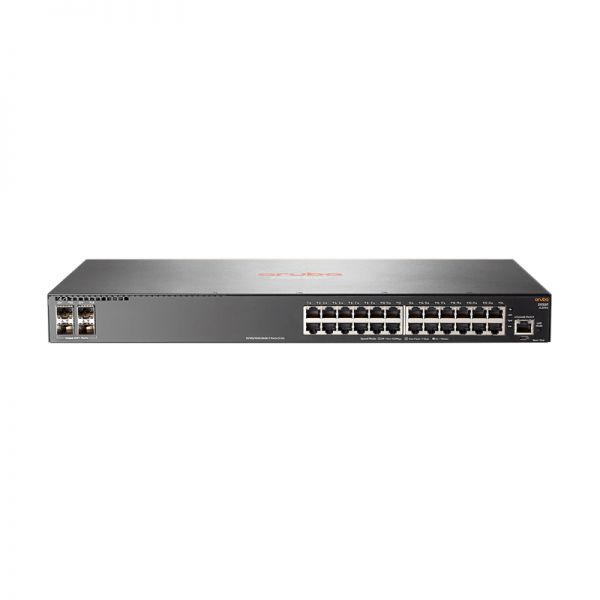

Aruba 2930F Technical Specifications

I/O ports and slots

• 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP

Additional ports and slots

• 1 dual-personality (RJ-45 or USB micro-B) serial console port

Physical characteristics

• Dimensions:17.42 (w) x 7.88 (d) x 1.73 (h) in (44.25 x 20.02 x 4.39 cm) (1U height)
• Weight: 5.31 lb (2.41 kg)

Memory and processor

• Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC

Performance

• IPv6 Ready Certified
• 1,000 Mb Latency: < 3.8 μs (64-byte packets)
• Throughput: up to 41.7 Mpps
• Switching capacity: 56 Gbps
• Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
• MAC address table size: 32,768 entries

Environment

• Operating temperature: 32°F to 113°F (0°C to 45°C); up to 5,000 Feet, 0°C to 40°C (32°F to 104°F) up to 10,000 Feet
• Operating relative humidity: 15% to 95% @ 104°F (40°C), noncondensing
• Non-operating/Storage temperature: -40°F to 158°F (-40°C to 70°C); up to 15,000 Feet
• Non-operating/Storage relative humidity: 15% to 95% @ 149°F (65°C), noncondensing
• Acoustic: Power: Power: 49.7 dB, Pressure: 37.1 dB
• Airflow direction: Side-to-side

Electrical Characteristics

• Frequency: 50/60 Hz
• Maximum heat dissipation: 100 BTU/hr (105.5 kj/hr)
• Voltage: 100 – 127 / 200 – 240 VAC, rated
• Current:0.6/0.4 A
• Maximum power rating: 29.3 W
• Idle power:19.5 W
• Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

• UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2014 / IEC 60825- 1:2014 Class 1

Emissions

• EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438

Immunity

• Generic: EN 55024:2010/CISPR 24
• ESD: IEC 61000-4-2
• Radiated: IEC 61000-4-3
• EFT/Burst: IEC 61000-4-4
• Surge: IEC 61000-4-5
• Conducted: IEC 61000-4-6
• Power frequency magnetic field: IEC 61000-4-8
• Voltage dips and Interruptions: IEC 61000-4-11
• Harmonics: IEC/EN 61000-3-2
• Flicker: IEC/EN 61000-3-3

Management

• Aruba Central; Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)

Services

• Refer to the Hewlett Packard Enterprise website at www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
