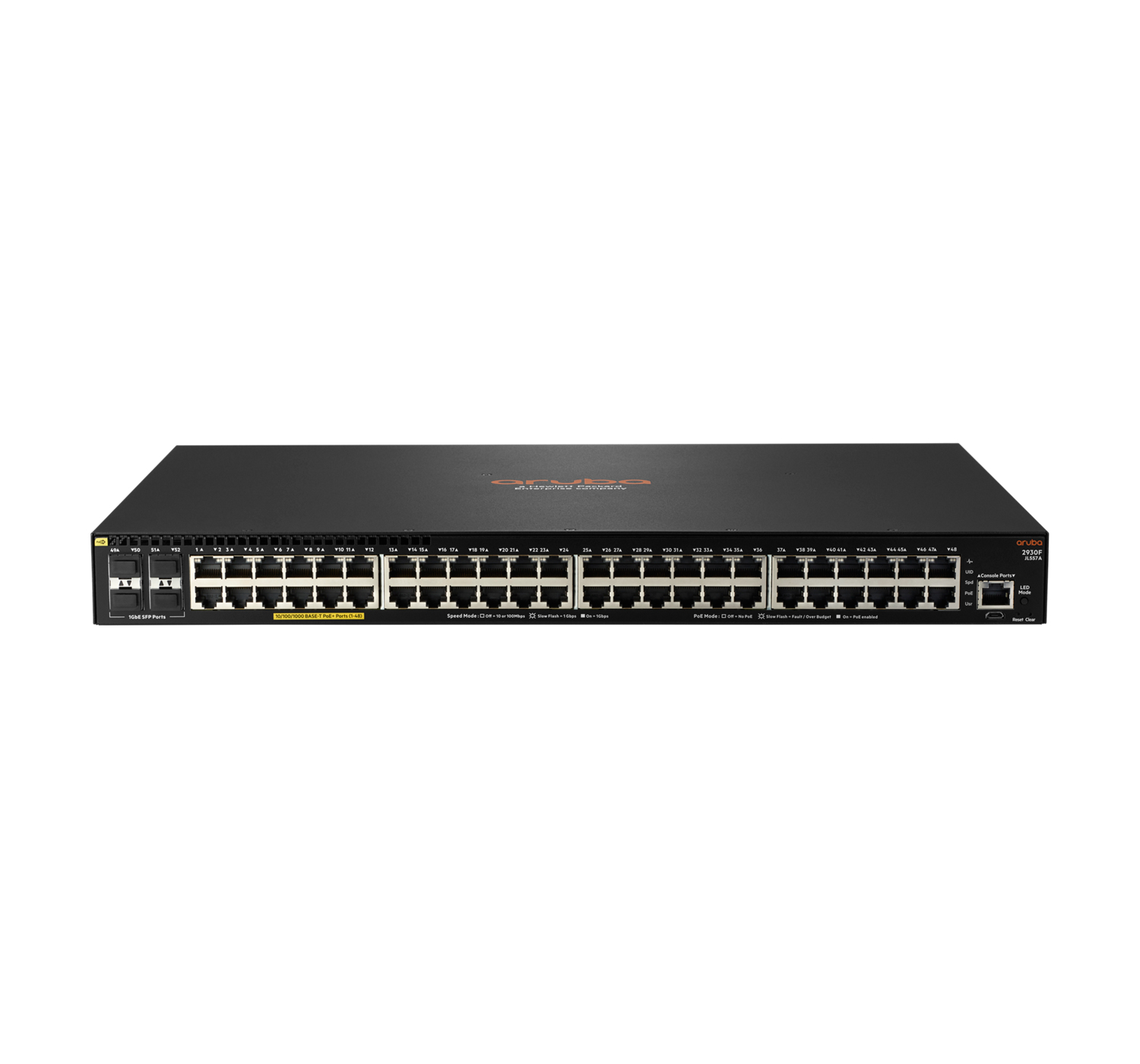

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

Specifications

Management features
Multicast support Yes
Traffic classification Yes
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Network
IGMP snooping Yes
Auto-sensing Yes
Networking standards IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex Yes
VLAN support Yes
Spanning tree protocol Yes
Rate limiting Yes
Link aggregation Yes
IP routing Yes
Flow control support Yes
Auto MDI/MDI-X Yes
10G support Yes
Virtual LAN features
VLAN support Yes
Performance
Packet buffer memory 12.38 MB
Stackable Yes
Processor frequency 1016 MHz
Memory type DDR3-SDRAM
Internal memory 1024 MB
Built-in processor Yes
Processor model ARM Cortex-A9
Technical details
Form factor 1U
Product colour Grey
Stackable Yes
Processor frequency 1016 MHz
Rack mounting Yes
Built-in processor Yes
Ports & interfaces
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Data transmission
Throughput 112 Mpps
Latency (1 Gbps) 3.8 µs
Latency (10 Gbps) 1.6 µs
Packet buffer memory 12.38 MB
MAC address table 32768 entries
Switching capacity 176 Gbit/s
Jumbo frames support Yes
Security
Authentication MAC-based authentication, Web-based authentication
SSH/SSL support Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP server
Multicast features
Multicast support Yes
Memory
Packet buffer memory 12.38 MB
Memory type DDR3-SDRAM
Internal memory 1024 MB
Design
Form factor 1U
Product colour Grey
Stackable Yes
Rack mounting Yes
Power
Power supply included Yes
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 740 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 15 – 95%
Operating temperature (T-T) 0 – 45 °C
Operating relative humidity (H-H) 15 – 95%
Heat dissipation 420.9 BTU/h
Weight & dimensions
Width 442.5 mm
Depth 324.2 mm
Height 43.9 mm
Weight 4.79 kg
